應用領域

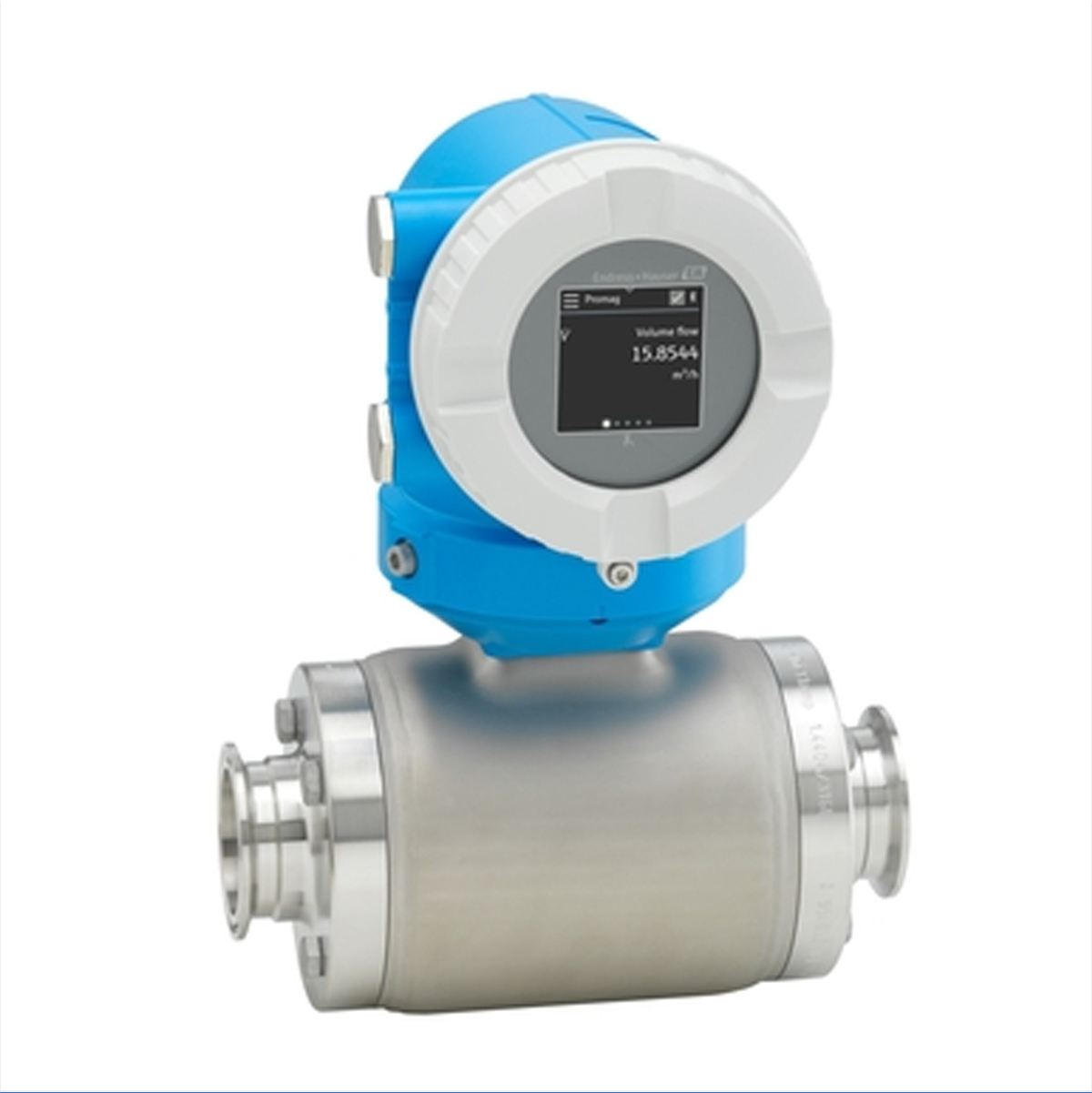

Promag H傳感器是食品與飲料、生命科學行業中衛生應用場合的理想選擇。Promag H 10的軟硬件設計均直觀明了，在保證Endress+Hauser高品質的前提下， 大大簡化了儀表從設計到服務全生命周期內的每一步操作。Heartbeat Technology心跳技術保證測量的可靠性，延長儀表校準周期。
優勢
安裝靈活：提供多種衛生型過程連接
節能流量測量：無節流部件，無壓損
免維護：無可移動部件
操控性：使用移動終端設備，安裝SmartBlue app，直接觸摸屏操作
調試簡單高效：引導式儀表組態預設置和現場設置
帶自校驗功能：采用Heartbeat Technology心跳技術
雙向流量測量，完全不受壓力、密度、溫度和粘度的影響。
滿足衛生應用場合的使用要求。
儀表特點
PFA內襯
不銹鋼傳感器外殼（3A認證、EHEDG測試）
接液部件材質能夠耐受CIP/SIP工藝
支持HART或Modbus RS485系統集成
安裝app，選配顯示單元，操作靈活
規格參數
測量原理 | 電磁 |
產品標題 | Flowmeter for basic hygienic applications with easy-to-use operation concept. For applications with sanitary requirements. |
傳感器特點 | Flexible installation concept – numerous hygienic process connections. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts. Liner made of PFA. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP-/SIP-cleanable. |
變送器特點 | Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology. System integration with HART, Modbus RS485. Flexible operation with app and optional display. |
公稱口徑范圍 | DN 2 to 150 (1??? to 6") |
接液部件材質 | Liner: PFA Electrodes: 1.4435 (316L); Alloy C22 Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve Seals: aseptic molded seal (EPDM, FKM, silicone) |
測量變量 | Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity |
最大測量誤差 | Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) |
測量范圍 | 0.06 dm3/min to 600 m3/h (0.015 to 2650 gal/min) |
最大過程壓力 | PN 40, Class 150, 20K |
介質溫度范圍 | –20 to +150 °C (–4 to +302 °F) |
環境溫度范圍 | –40 to +60 °C (–40 to +140 °F) |
傳感器外殼材質 | 1.4301 (304), corrosion resistant |
變送器外殼材質 | AlSi10Mg, coated |
防護等級 | Standard: IP66/67, type 4X enclosure |
顯示/操作 | 2.4" LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible |
輸出 | 4-20 mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20 mA |
| 數字通信 | HART, MODBUS RS485 |
電源 | DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) |
防爆認證 | CSA, GP, KC |
計量認證和證書 |
|
壓力認證和證書 | PED, CRN |
材料證書 | 3.1 material |
衛生型認證和證書 | Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP |
